CENTER LINE ALLOY WHEELS
RACING TRUCK SERIES
|
|
|

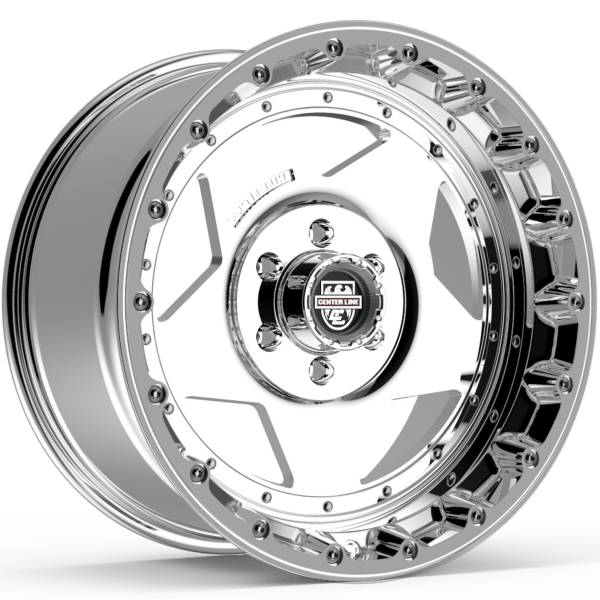

Center Line RT1V PVD Finish
|
|
|
Center Line Aluminum Alloy Wheels
|
|
Part Number | Wheel Size | Bolt Circle | Offset mm | Back Spacing | Hub Bore Diameter |
| CRT1-20105127N24V | 20X10 | 5X127 | -24 | 4.5 | 78.1 |
| CRT1-20105114N24V | 20X10 | 5X114.3 | -24 | 4.5 | 78.1 |
| CRT1-20105115N24V | 20X10 | 5X115 | -24 | 4.5 | 73 |
| CRT1-20105135N24V | 20X10 | 5X135 | -24 | 4.5 | 87.1 |
| CRT1-20105139N24V | 20X10 | 5X139.7 | -24 | 4.5 | 87.1 |
| CRT1-20105150N24V | 20X10 | 5X150 | -24 | 4.5 | 110.2 |
| CRT1-20106135N24V | 20X10 | 6X135 | -24 | 4.5 | 87.1 |
| CRT1-20106139N24V | 20X10 | 6X139.7### | -24 | 4.5 | 106.2 |
| CRT1-20108165N24V | 20X10 | 8X165.1 | -24 | 4.5 | 125.2 |
| CRT1-20108170N24V | 20X10 | 8X170 | -24 | 4.5 | 125.2 |
| CRT1-20108180N24V | 20X10 | 8X180 | -24 | 4.5 | 125.2 |
| CRT1-20905127Q00V | 20X9 | 5X127 | 0 | 5 | 78.1 |
| CRT1-20905127P12V | 20X9 | 5X127 | +12 | 5.5 | 78.1 |
| CRT1-20905114P12V | 20X9 | 5X114.3 | +12 | 5.5 | 78.1 |
| CRT1-20905115P12V | 20X9 | 5X115 | +12 | 5.5 | 73 |
| CRT1-20905135P12V | 20X9 | 5X135 | +12 | 5.5 | 87.1 |
| CRT1-20905139P12V | 20X9 | 5X139.7 | +12 | 5.5 | 87.1 |
| CRT1-20905150P12V | 20X9 | 5X150 | +12 | 5.5 | 110.2 |
| CRT1-20906135P12V | 20X9 | 6X135 | +12 | 5.5 | 87.1 |
| CRT1-20906139P12V | 20X9 | 6X139.7### | +12 | 5.5 | 106.2 |
| CRT1-20908165P12V | 20X9 | 8X165.1 | +12 | 5.5 | 125.2 |
| CRT1-20908170P12V | 20X9 | 8X170 | +12 | 5.5 | 125.2 |
| CRT1-20908180P12V | 20X9 | 8X180 | +12 | 5.5 | 125.2 |
|
|
Centerline Wheels and Center Line Alloys are custom wheels that offer
superior quality, excellence of engineering and innovation, building the
finest, most technically advanced aftermarket custom wheels available.
Center Line one-piece cast alloy wheels are now available for Modern
Muscle, Racing Truck, Street Truck, and Lifted Truck applications.
This new generation of custom wheels brings a fresh perspective in
design innovation encompassing the original classic elements that gave
Center Line its name.
|
|
|
|
|
~ Optional Simulated Bead Lock Rings Available ~
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
